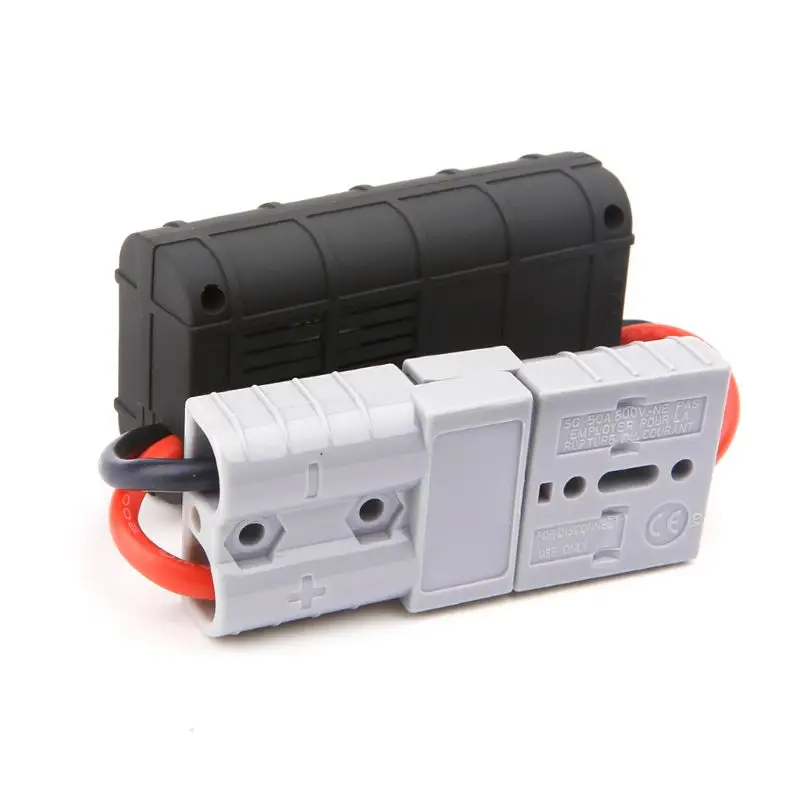

DC Watt Meter with Anderson Plugs

Our DC Watt Meter with Anderson Plugs is a high precision battery power meter and power analyser for your solar panel, 4×4, camping, caravan and boating. Excellent for any 12 or 24 volt battery system. Track your usage. Even monitor your inverter.

The LCD screen gives clear number readings. Choose either the 100 amp or 200 amp options. Best of all, you don’t need to buy Anderson plugs and solder them on as we have already done it for you. Just purchase and plug it in-line and your ready to check your stats.

The DC Watt Meter with Anderson Plugs provides 8 Electrical Readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp).

Features

Prevents peak currents damaging battery, ESC, motors, wiring and connectors.
Verifies sufficient operating voltage under load.
Individual cell balancing. Set cut-off voltages, check battery capacity health.
Confirms proper battery charger operation (connect between your battery and charger).
Detect receivers and actual operating current so as to make sure whether an UBEC is needed.
Blue backlit LCD display.
2x Plug included.

For batteries and other related equipment, go to Batteries & Charging Equipment

Specification

Current: 100A , 200A
Operates from 4.8-60V
0V with optional auxiliary battery
Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Material: Plastic & metal
Dimensions: 2.6×4.3×8.3cm/1.02×1.69×3.27inch
Colour: Black
Quantity: 1 Pc
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual colour of the item. Thank you!

Package includes

1 x Watt Meter and Power Analyser with 2 Plugs
1 x User’s Manual
